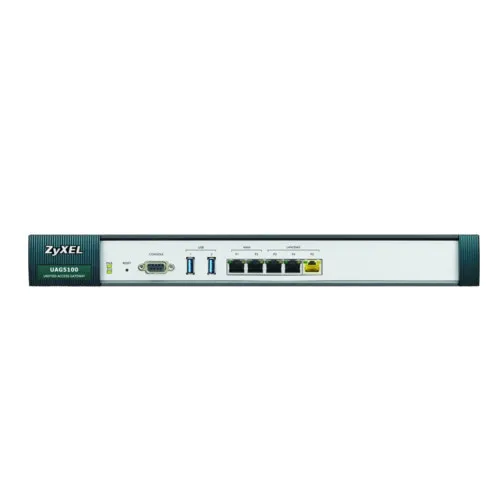

ZyXEL UAG5100 Unified Access Gateway
| RJ-45 ports | 3 x LAN, 2 x WAN (10/100/1000 Mbps) | |
| USB ports | 2 | |
| Ticket printer support | Yes (SP350E) | |
| Routing throughput (Mbps) | 250 | |
| Concurrent logins (default/max.) | 500/800 | |
| Max. concurrent sessions | 80,000 | |
| DHCP pool size | 4,096 | |
| Built-in account generator | Static accounts 300 Dynamic accounts 4,000 | |
| Built-in WLAN controller | Yes | |
| Managed AP number (default/max.) | 16/32 | |
| WAN load-balancing/failover | Yes/Yes | |
| Web-based authentication | Yes | |
| RADIUS client | Yes | |
| Time-to-finish/Accumulation billing modes | Yes/Yes | |
| Customizable billing profiles | Yes | |
| Account operator | Yes | |
| User agreement | Yes | |
| SMS ticketing | Yes | |
| SPI firewall | Yes | |
| Layer 2 isolation | Yes | |
| VPN pass-through | Yes | |
| IPSec VPN | Yes (10 tunnels) | |
| 802.1x support | Yes | |
| Syslog | Yes | |
| SNMP | Yes | |
| Limited user sessions | Yes | |
| Pass-through address | Yes (IP) | |
| Walled garden | Yes | |
| Customizable login page | Yes | |
| Customizable user agreement page | Yes | |
| Power input | 802.3at PoE Plus input; 100 - 240 V AC, 50/60 Hz, 0.6 A max. | |
| Max. power consumption (watt) | 25 | |
| Item | Dimensions (WxDxH)(mm/in.) 382 x 205 x 44/15.04 x 8.07 x 1.73 Weight (kg/lb.) 2.36/5.20 | |
| Packing | Dimensions (WxDxH)(mm/in.) 444 x 295 x 152/17.48 x 11.61 x 5.98 Weight (kg/lb.) 3.7/8.16 | |
| Included accessories |
| |
| Operating | Temperature 0°C to 40°C (32°F to 104°F) Humidity 10% to 90%(non-condensing) | |
| Storage | Temperature -30°C to 70°C (-22°F to 158°F) Humidity 10% to 90%(non-condensing) | |
| MTBF (hr) | 71,032 | |
| EMC | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI | |
| Safety | LVD (EN60950-1), BSMI |
| Тип | Аппаратный файрвол |
| Возможность монтажа в стойку | Нет |
